Data flow

This page describes how Yres runs a single load: from the moment a pipeline starts to the moment the data sits historized in the data warehouse. It is the common thread beneath all other concepts — once you understand this flow, you understand why a load type does what it does and where monitoring gets its numbers.

The core idea: metadata steers, code is generic​

Nothing about a specific customer's tables is hardcoded in ADF or in SQL. The database publishes, through a single view, "here is every table that needs to be loaded, with all its parameters"; ADF reads that view, fans out, copies bytes into the staging table and calls back into SQL to do the actual merge.

Adding a source = inserting metadata rows, not writing a pipeline.

  • The contract view is [LoadManagement].[vwExtractor]. It is a one-liner pass-through: SELECT * FROM [LoadManagement].[fxExtractor](NULL,NULL).
  • All the logic therefore lives in the table-valued function [LoadManagement].[fxExtractor] ((@LoadFilter, @LoadType) — just two parameters). Every row that fxExtractor returns is one table to load, with all the parameters ADF passes downstream: the load type, the ready-made DeltaScript, the target schema names, file/parse options and the pagination settings.
Remember

ADF is a generic executor. The load logic lives entirely in SQL. ADF only moves bytes into STAGE.<Target> and then calls a stored procedure.

The flow at a glance​

The authoritative orchestrator is the pipeline Dynamic Workflow YRES (on older versions it is still called Dynamic Workflow IRIS). It receives parameters — Source, Schema, Table, LoadType, RunningTier, RevertToTier — and runs through the following steps.

 Trigger / manual run / web-app call
   params: Source, Schema, Table, LoadType, RunningTier, RevertToTier
        │
        ▼
 Dynamic Workflow YRES
   1. WLS Start workflow        →  [Monitoring].[spWriteLoadStatus]        (log start)
   2. (optional) scale DB up    →  [Config].[spSetDatabaseServiceTier]     (only if a tier is supplied)
   3. Get tables (Lookup)       →  [LoadManagement].[spPrepareWorkload]
                                       └→ vwExtractor → fxExtractor         (which tables + parameters?)
   4. ForEach "Load data"  (parallel, batchCount 5)  — per table:
        ├─ Orchestration - Hub  →  Orchestration - Switch 1 (switch on Source)
        │        └→ Dynamic Pipeline YRES - <Source>
        │              source → Copy → STAGE.<Target>     (ADF only moves bytes)
        ├─ Load DWH             →  [LoadManagement].[spLoadDWH]
        │        └→ [LoadManagement].[spHIS_InsertAndUpdate]   (STAGE → HIS, SCD2 merge)
        ├─ Load DL (optional)   →  Copy STAGE → Parquet in the Data Lake
        ├─ Truncate STAGE       →  [LoadManagement].[spSTAGE_TruncateTable] (skipped when keepStage=1)
        └─ WLS End load         →  [Monitoring].[spWriteLoadStatus]         (status per step)
   5. Materialize Views         →  [LoadManagement].[spMaterializeViews]
   6. (optional) scale DB back down
   7. WLS End Workflow          →  [Monitoring].[spWriteLoadStatus]         (close out + reconcile)

Step by step​

  1. Start of the workflow. WLS Start workflow calls [Monitoring].[spWriteLoadStatus]. That opens a row in Monitoring.LS_Pipeline (one row per run) and logs the first step in Monitoring.LS_Trans (one row per step).
  2. Optional scale-up. If the run is given a higher service tier, [Config].[spSetDatabaseServiceTier] temporarily scales up the Azure SQL database for heavier work.
  3. Fetch the work list. A Lookup calls [LoadManagement].[spPrepareWorkload], which returns the list of tables to load via vwExtractor → fxExtractor. Every row carries all the load parameters.
  4. Load per table (ForEach). The ForEach activity "Load data" runs in parallel (batchCount 5). For each table the following happens:
    • Source → STAGE. Orchestration - Hub → Orchestration - Switch 1 switches on the value of Source and starts the right source pipeline Dynamic Pipeline YRES - <Source>. It runs a single Copy activity that literally copies the source data into STAGE.<Target>, adding an ETL_Date column. Here ADF only moves bytes.
    • STAGE → HIS. Load DWH calls [LoadManagement].[spLoadDWH], a thin pass-through to [LoadManagement].[spHIS_InsertAndUpdate]. This procedure does the actual, set-based SCD2 merge from STAGE into the history layer (see SCD2 & hashing below).
    • Optionally to the Data Lake. Load DL copies STAGE as Parquet to Azure Data Lake Gen2 (only if the target also has a Data Lake platform).
    • Clean up STAGE. [LoadManagement].[spSTAGE_TruncateTable] empties the staging table — unless keepStage=1 is set for that table, in which case STAGE is preserved.
    • Log status. WLS End load writes, via spWriteLoadStatus, the status (RUNNING / SUCCEEDED / FAILED) and the row counts per step.
  5. Materialize views. After all tables, [LoadManagement].[spMaterializeViews] runs to refresh persisted/reporting views.
  6. Optional scale-down. If a scale-up happened, Set DB Tier Back returns the database to the base tier.
  7. Close out. WLS End Workflow closes the run, reconciles any leftover statuses and writes the final status.
ADF moves bytes, SQL does the load

The only place where Yres actually moves data is the ADF Copy activity (source → STAGE, and optionally STAGE → Parquet). All the logic — what is new, what changed, what must be closed out, how history is built — lives in the SQL procedure spHIS_InsertAndUpdate. That is the strict separation between orchestration and logic.

SCD2: the history layer​

spLoadDWH is a pure pass-through to spHIS_InsertAndUpdate (the old call to spUpdateETL_EndDate is commented out — closing out versions now happens inside spHIS_InsertAndUpdate itself). Exactly what the merge does depends on the load type, but the mechanism is the same SCD2 model (Slowly Changing Dimension type 2) for all types:

  • STAGE has two persisted computed columns, KeyHash and RowHash (varbinary(66), via HASHBYTES('SHA2_512', …)). KeyHash is computed over the key columns, RowHash over the change-sensitive columns.
  • The match join is STAGE.Keyhash = HIS.Keyhash AND HIS.isCurrent = 1; a row has changed if, in addition, STAGE.Rowhash <> HIS.Rowhash. A column with Rowhash = 0 does not count toward change detection.
  • Every history row gets an ETL_Date (load timestamp) and an ETL_EndDate. An open (current) version has the sentinel '2999-01-01 00:00:00' and IsCurrent = 1. When a row changes, the old version is closed out (IsCurrent = 0, ETL_EndDate = the new ETL_Date) and a new current version is added.
FULL preserves history

FULL is a history-preserving SCD2 upsert: new records are inserted, changed records get a new version (the old one is closed out), and records missing from this batch simply stay open. Only OVERWRITE wipes history (truncate of HIS); RELOAD closes out the old generation but preserves it as history. See Load types for the full table.

Variants of the workflow​

PipelineWhen
Dynamic Workflow YRESDefault: discovers via vwExtractor which tables to load and loads them in a ForEach loop.
Direct Workflow YRESLoads one specific target, without the discovery loop.
Dynamic Archiving Workflow YRESArchiving: copies old history to Parquet with verification and then purges, driven by the ArchivingScript on vwExtractor.
Code quirk

In Orchestration - Switch 1 the Oracle case points to the pipeline Dynamic Pipeline YRES - MySql — so Oracle is handled through the MySql ingestion pipeline.

Where you see the flow again​

Every ADF step calls spWriteLoadStatus, which logs into three tables:

  • Monitoring.LS_Pipeline — one row per run.
  • Monitoring.LS_Trans — one row per step (status + row counts + log).
  • LoadManagement.LoadLog — one durable row per table load (status, start/end, config snapshot).

For analysis there are monitoring views: vwLoads (timeline per pipeline) and vwMonitor (broader, including view materialization and Power BI refresh). The system checks live in [Maintenance].[vwYresChecks] (the source file is still named vwIrisChecks.sql).

In the frontend you see this on the Load management → Monitoring screen:

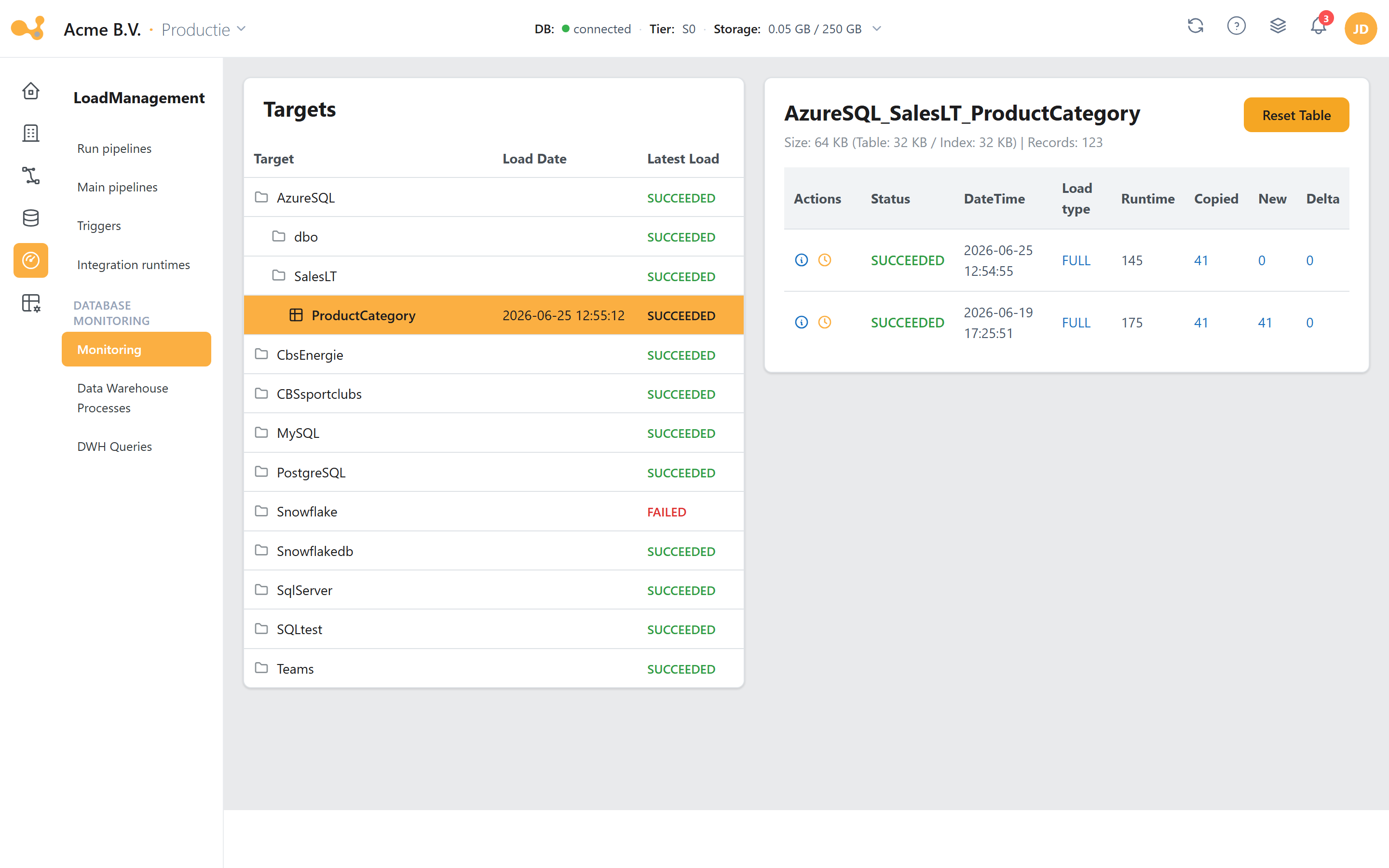

Yres Monitoring screen with the targets tree on the left, runs grid in the middle and a steps modal at the bottom

The Monitoring screen reads directly from Monitoring.LS_Trans; for a failed run the error message and a link to the ADF run appear above the overview.

  1. Targets tree — Source / Schema / Table with a status roll-up per level.
  2. Selected target with a summary of size and record count.
  3. Reset table — resets the table (with confirmation).
  4. Runs grid — per run: Status, DateTime, Load type, Runtime, Copied, New and Delta.
  5. Per-run actions — the info icon opens the steps modal; the clock icon starts a rollback.
  6. Steps modal — Step / DateTime / Status / Log / Rows per step within the run.
